Jazz Bass® Neck Assembly Jig

$39.95

A precision assembly jig for Jazz Bass® neck pickup bobbins. Designed to keep the flatwork and pole pieces aligned during assembly for cleaner, faster, and more repeatable builds.

Jig only. Flatwork, pole pieces, magnets, wire, and other pickup components shown in demonstration photos are sold separately.
Price is shown in your selected store currency. Canadian taxes are calculated at checkout where applicable.
Builder-selected pole setup Jig does not force pole height
Bench-ready workflow Assemble, remove, and wind
Eyelet clearance Room for installed bottom-flatwork eyelets
Built for pickup makers

Keep the neck bobbin aligned during assembly.

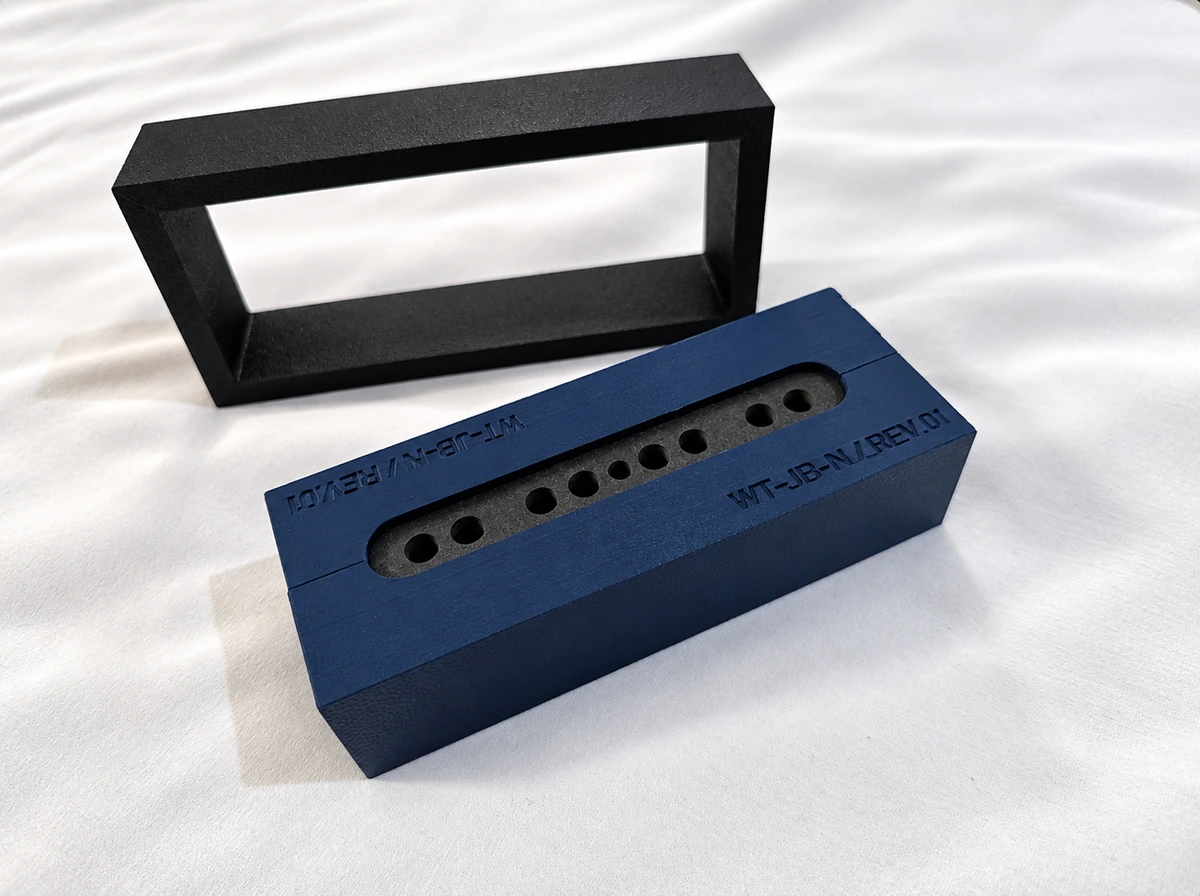

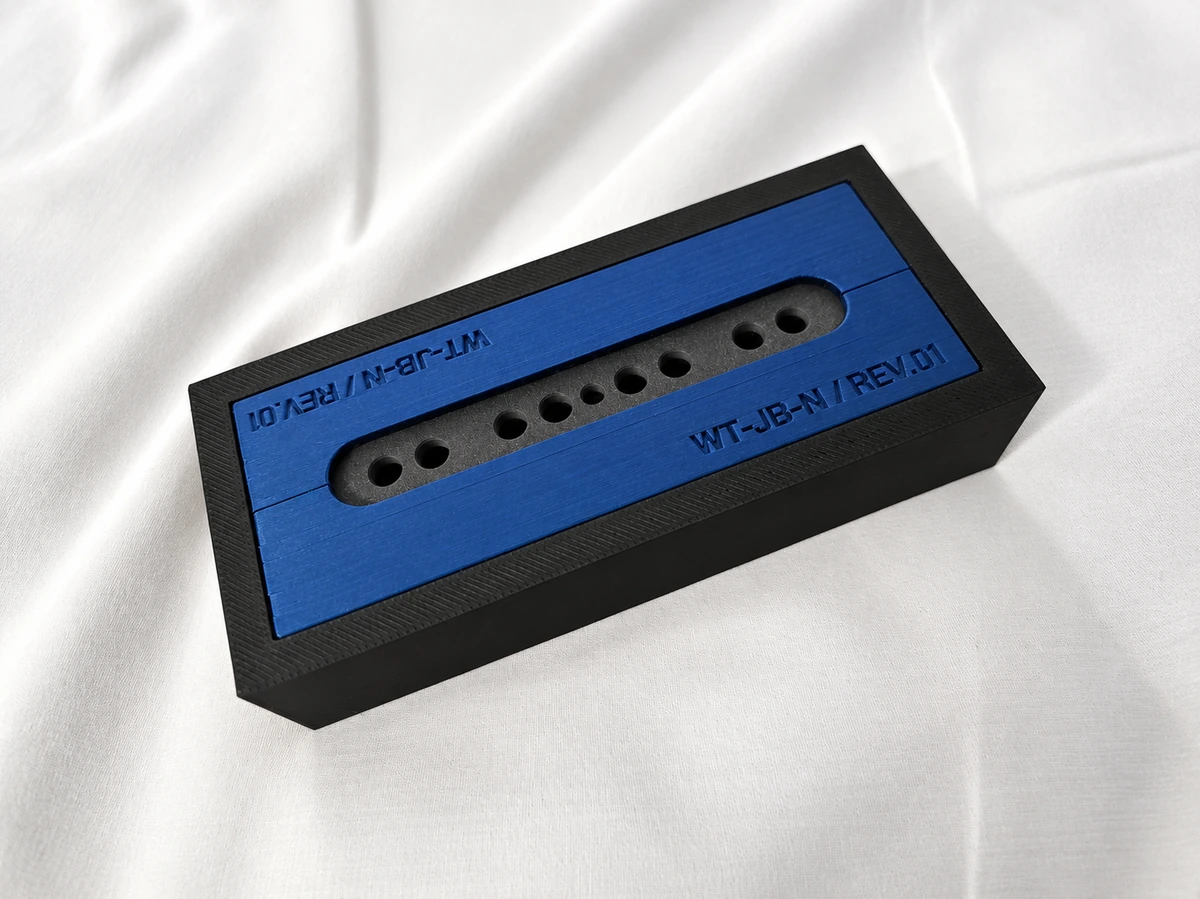

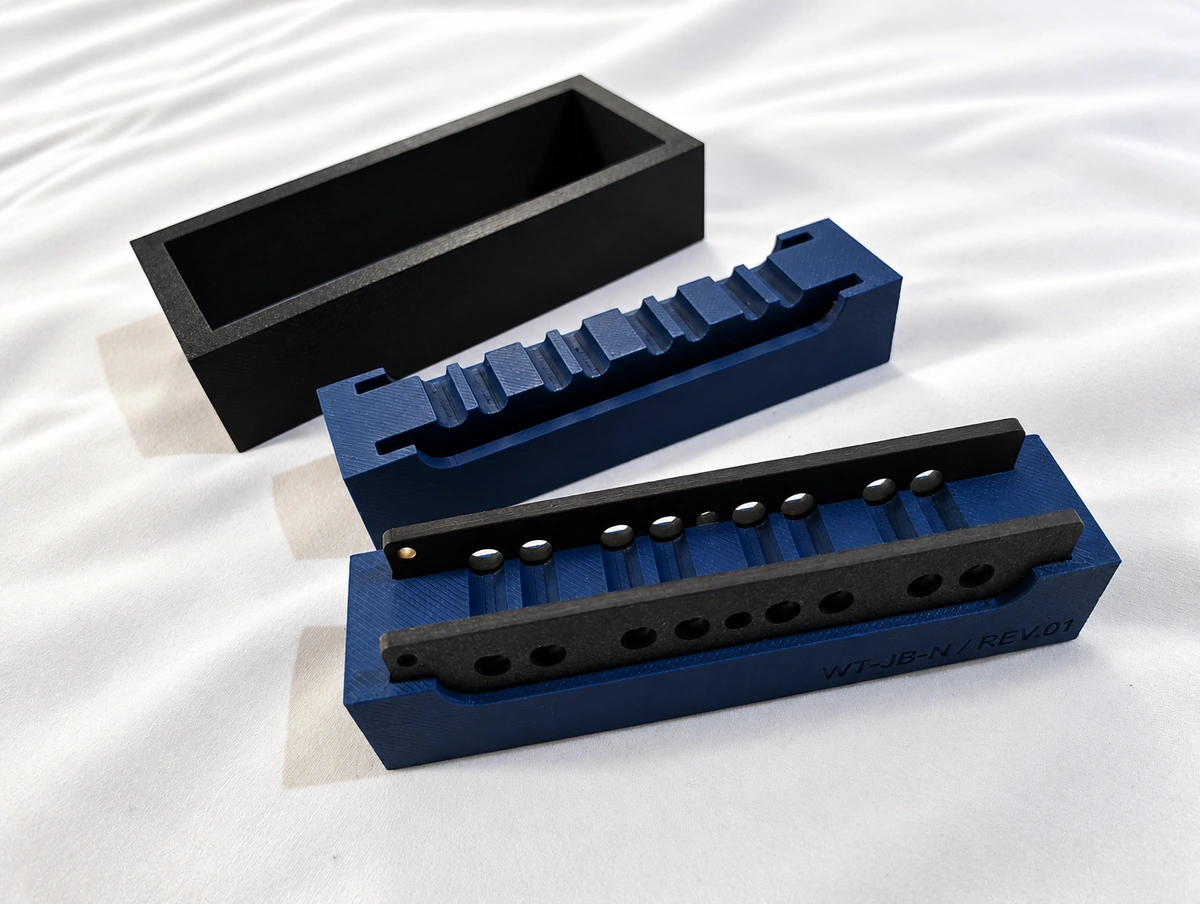

The WT-JB-N holds the top and bottom flatwork securely while the pole pieces are installed, helping maintain consistent alignment and geometry from one pickup to the next.

Flatwork compatibility

Pole piece diameter 0.187 in / 4.75 mm
Winding cavity 0.53 in / 13.5 mm
Top flatwork 0.093 in / 2.36 mm
E-to-G center spread 2.48 in / 63 mm
Bottom flatwork 0.093 in / 2.36 mm
Total stack 0.72 in / 18.22 mm
What you get

Simple, purpose-built tooling.

1 × WT-JB-N Assembly Jig

The Jazz Bass® neck assembly fixture shown on this page.

Matching flatwork sold separately

Choose the corresponding Jazz Bass® neck flatwork set independently from the jig.

Components not included

Pole pieces, magnets, eyelets, wire, flatwork, and other pickup parts are not included.

Geometry

Jazz Bass® neck pickup format.

The neck version is designed around the narrower spacing used for Jazz Bass® neck pickups. The dedicated neck geometry keeps the flatwork and pole pieces aligned throughout bobbin assembly.

Need matching flatwork?

Pair the jig with the corresponding Winder Tooling Jazz Bass® neck flatwork set.

VIEW FLATWORK
Jazz Bass® is a trademark of Fender Musical Instruments Corporation. Winder Tooling is not affiliated with, sponsored by, or endorsed by Fender. The trademark is used solely to identify product compatibility.
×
×
