Pickup Assembly Jig · WT-T-B

Telecaster® Bridge Assembly Jig

$39.95

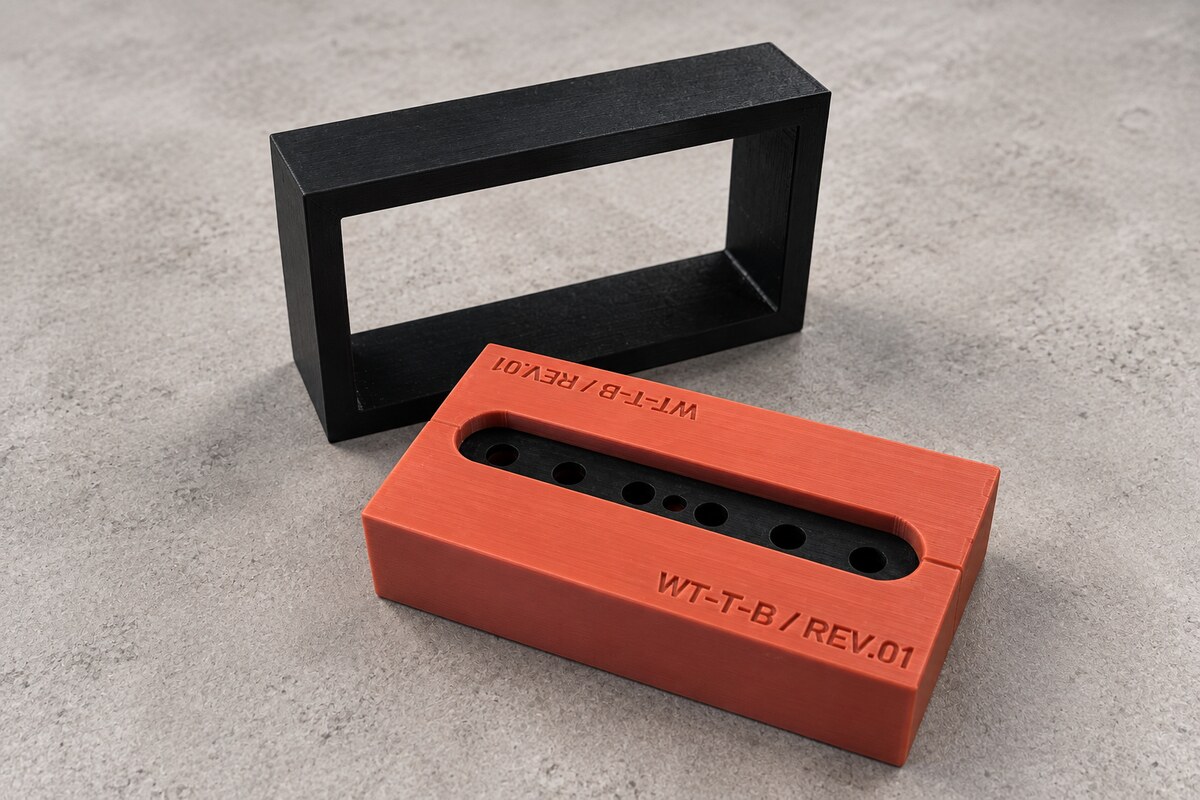

A precision assembly jig for Telecaster® bridge pickup bobbins. Designed to keep flatwork and pole pieces aligned for fast, precise, and repeatable assembly.

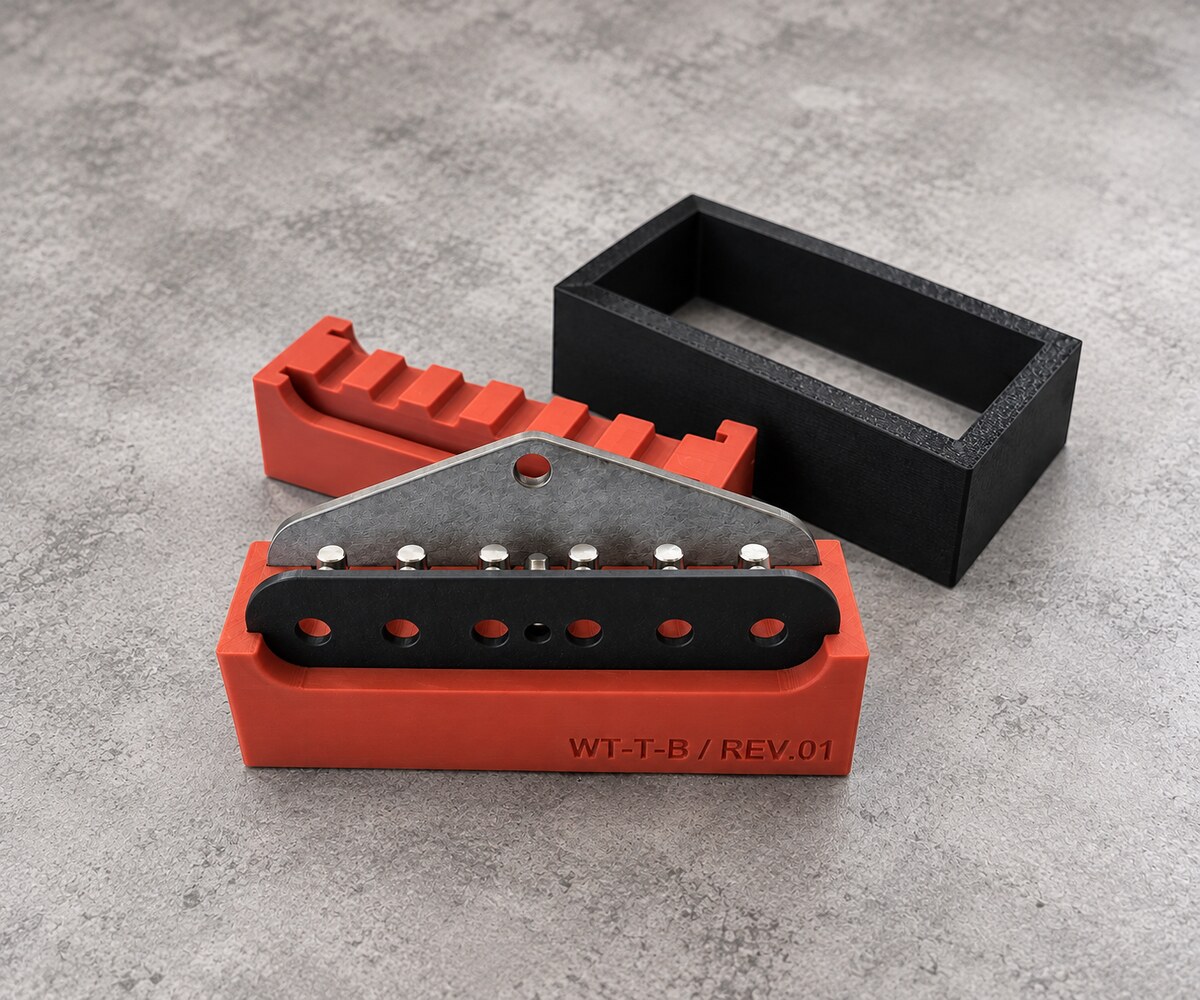

Jig only. Flatwork, pole pieces, magnets, and other pickup components shown in demonstration photos are sold separately.

Price is shown in your selected store currency. Canadian taxes are calculated at checkout where applicable.

Builder-selected stagger Jig does not force pole height

Bench-ready workflow Assemble, remove, and wind

Eyelet clearance Room for installed bottom-flatwork eyelets

Built for pickup makers

Keep the geometry where you put it.

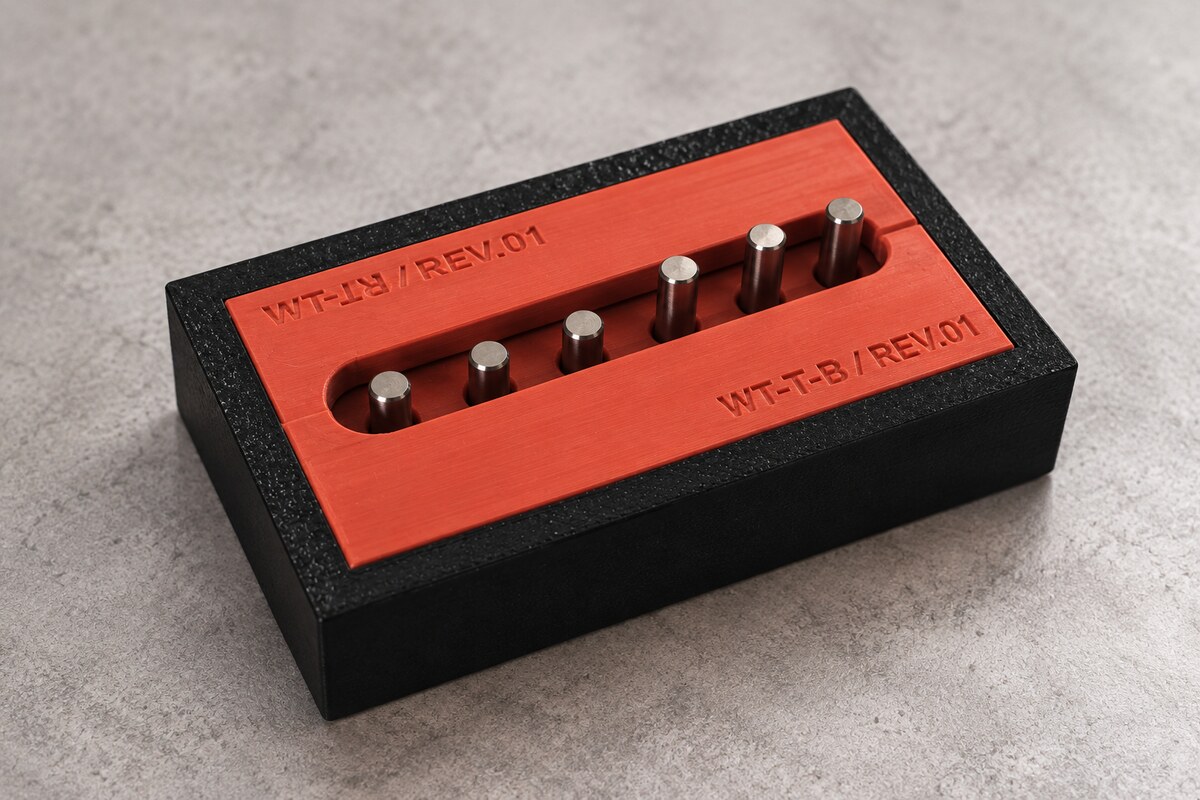

The WT-T-B securely aligns the top and bottom flatwork while the pole pieces are installed, helping maintain consistent spacing and coil geometry while leaving the pole-piece stagger entirely up to the builder.

Flatwork compatibility

Pole piece diameter 0.187 in / 4.75 mm

E-to-E center spread 2.165 in / 55.00 mm

Top flatwork 0.062 in / 1.57 mm

Winding cavity 0.469 in / 11.90 mm

Bottom flatwork 0.093 in / 2.36 mm

Total stack 0.623 in / 15.83 mm

What you get

Simple, purpose-built tooling.

1 × WT-T-B Assembly Jig

The assembly fixture shown on this page.

Matching flatwork sold separately

Choose your matching flatwork independently from the jig.

Components not included

Pole pieces, magnets, eyelets, wire and other pickup parts are not included.

Geometry

Telecaster® bridge pickup format.

Designed around Telecaster® bridge pickup geometry used across early-'50s blackguard-style builds as well as today.

Need matching flatwork?

Pair the jig with the corresponding Winder Tooling flatwork set.

VIEW FLATWORK

Telecaster® is a trademark of Fender Musical Instruments Corporation. Winder Tooling is not affiliated with, sponsored by, or endorsed by Fender. The trademark is used solely to identify product compatibility.
