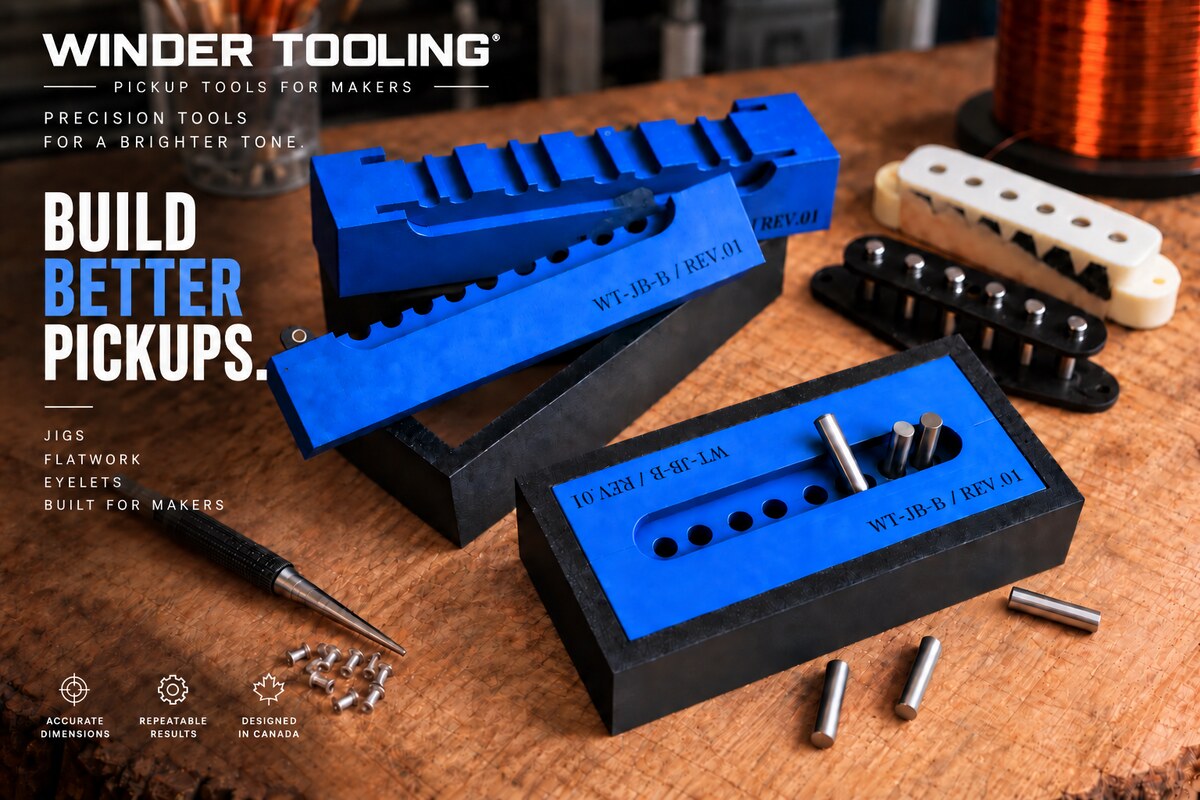

Winder Tooling pickup jigs on a workshop bench

Workshop-built pickup tooling

Built for the winding bench.

Winder Tooling makes purpose-built pickup assembly jigs, matching flatwork, and eyelets for builders who care about clean setup, accurate geometry, and repeatable work.

A focused catalog.

No broad accessory line. Just the parts and tooling involved in getting a pickup bobbin assembled and ready to wind.

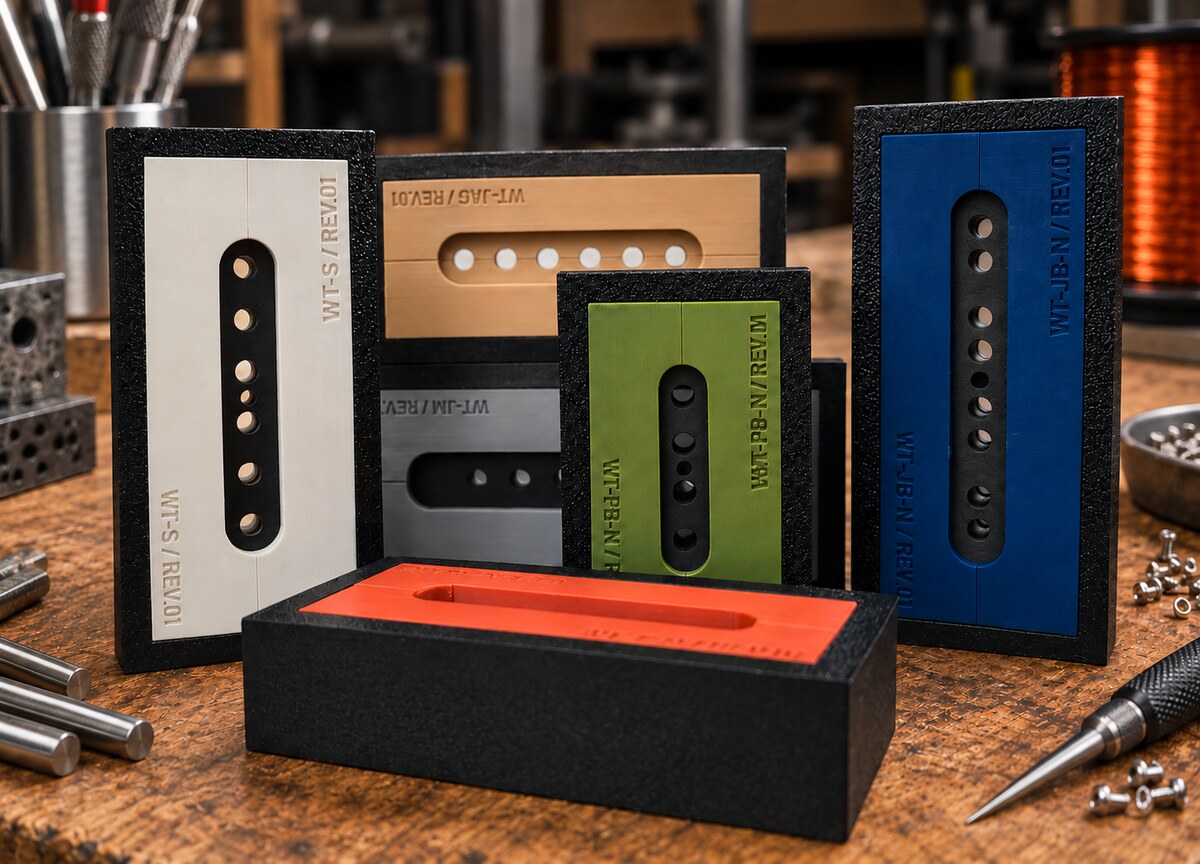

Winder Tooling pickup assembly jigs

Pickup Assembly Jigs

Load the matching flatwork, install the pole pieces, remove the completed bobbin, and move directly to winding.

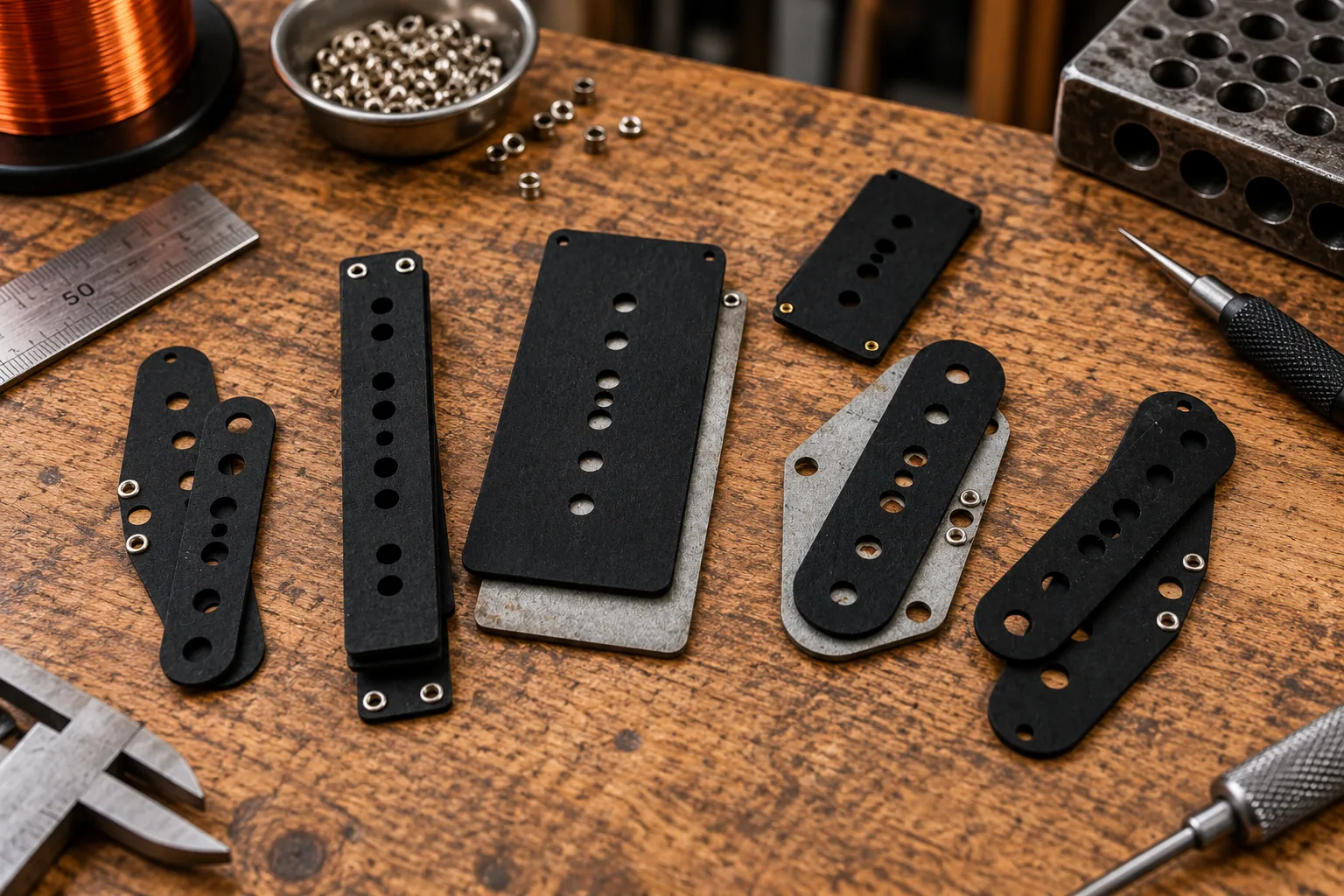

Winder Tooling pickup flatwork sets

Flatwork Sets

Pre-cut fiber flatwork matched to corresponding Winder Tooling jig geometry.

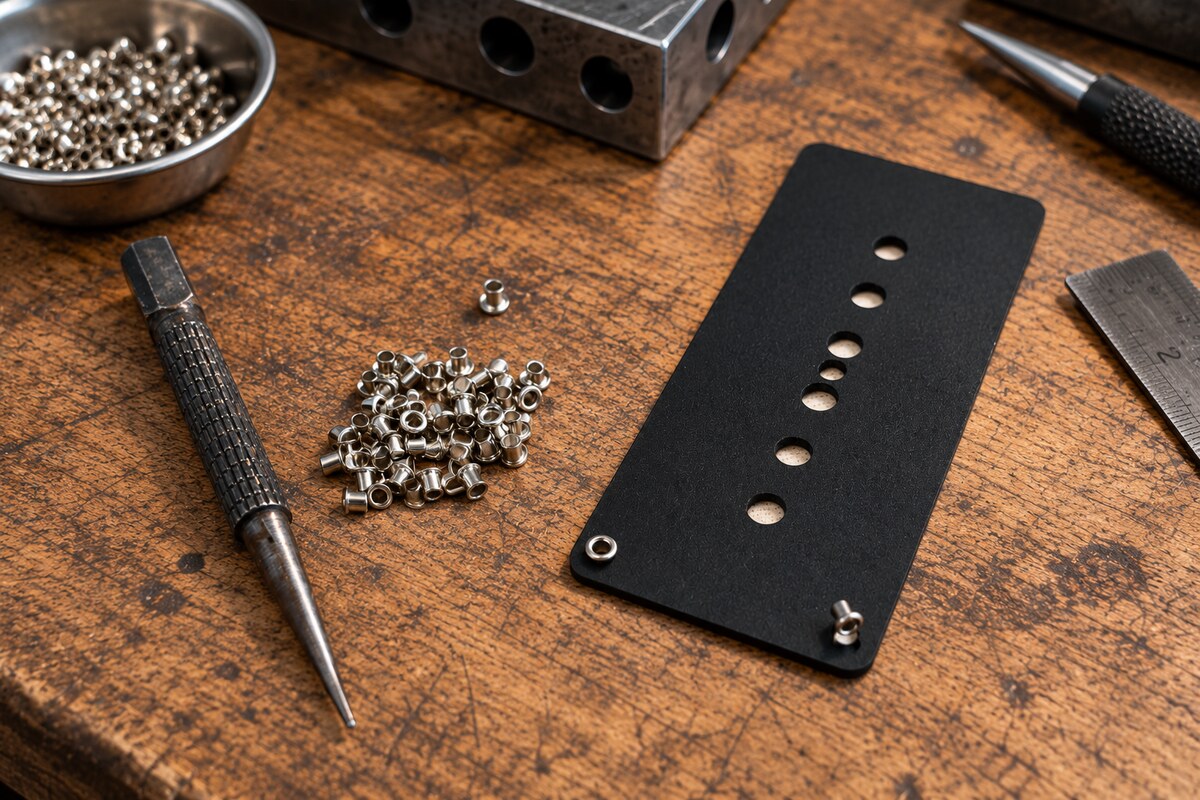

Winder Tooling pickup-making eyelets

Eyelets

Pickup-making eyelets supplied separately for builders assembling pickups from raw components.

Jig Types

Dedicated geometry.

Each jig is built around the specific construction of a pickup type. The fixture should fit the pickup—not the other way around.

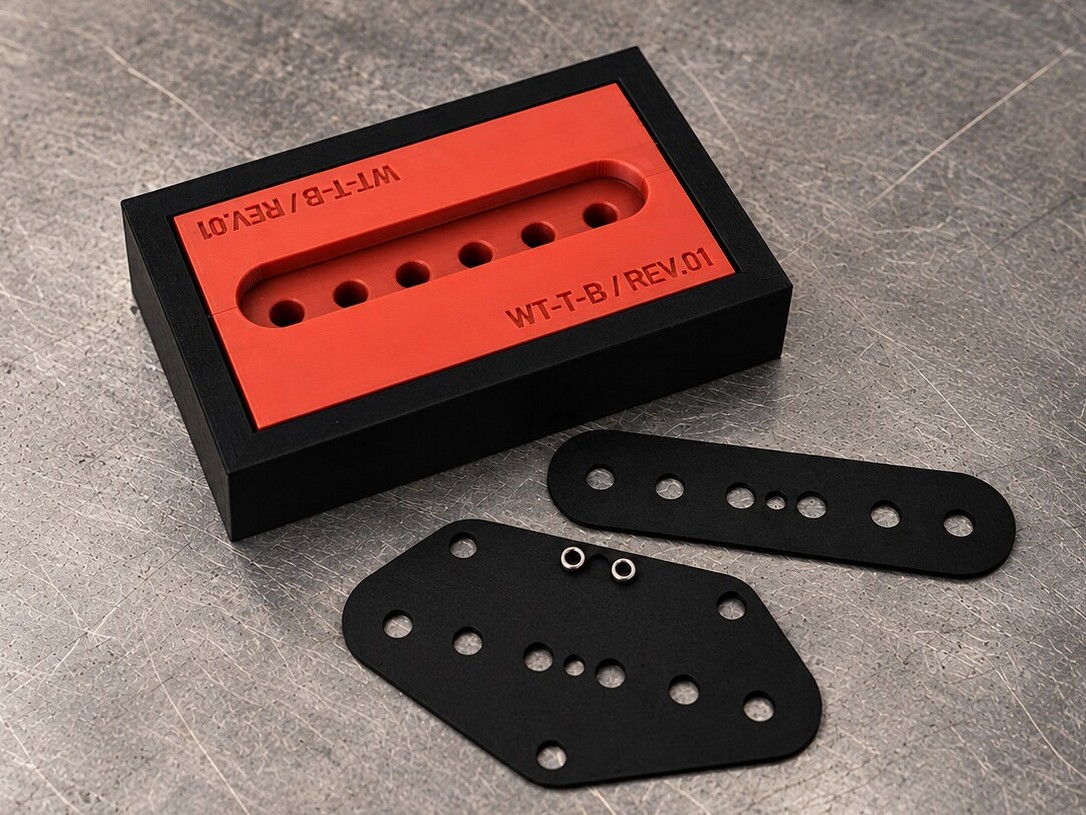

Winder Tooling Telecaster® Bridge pickup assembly jig
Telecaster® Bridge

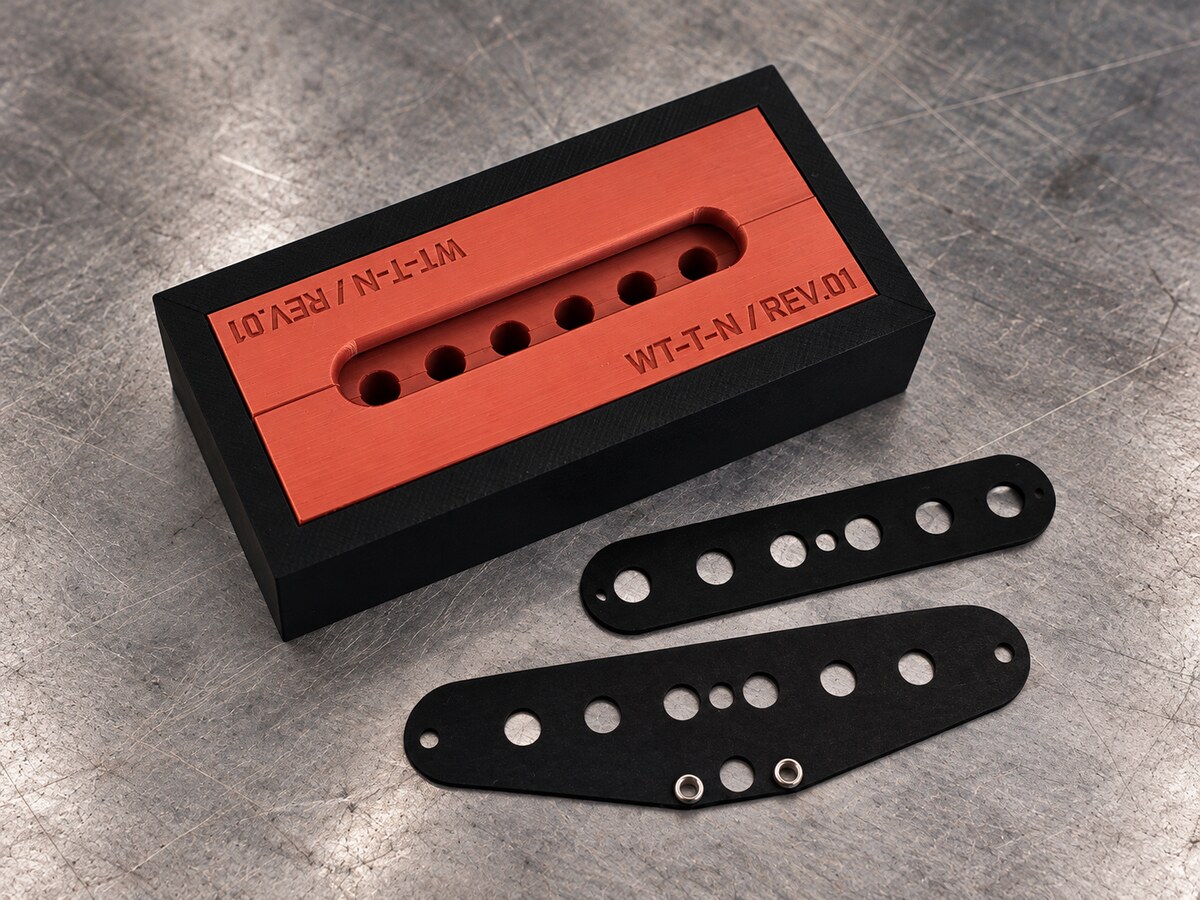

Winder Tooling Telecaster® Neck pickup assembly jig
Telecaster® Neck

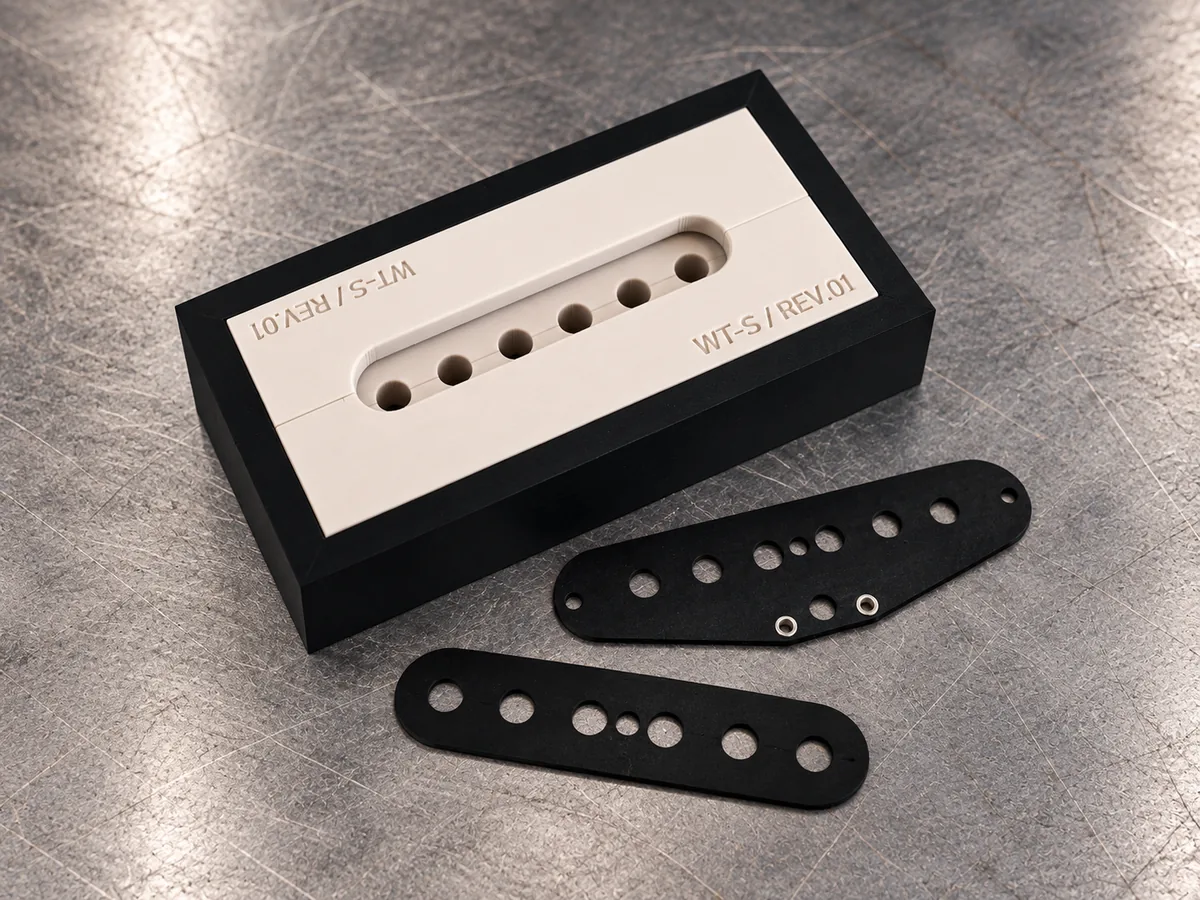

Winder Tooling Stratocaster® pickup assembly jig
Stratocaster®

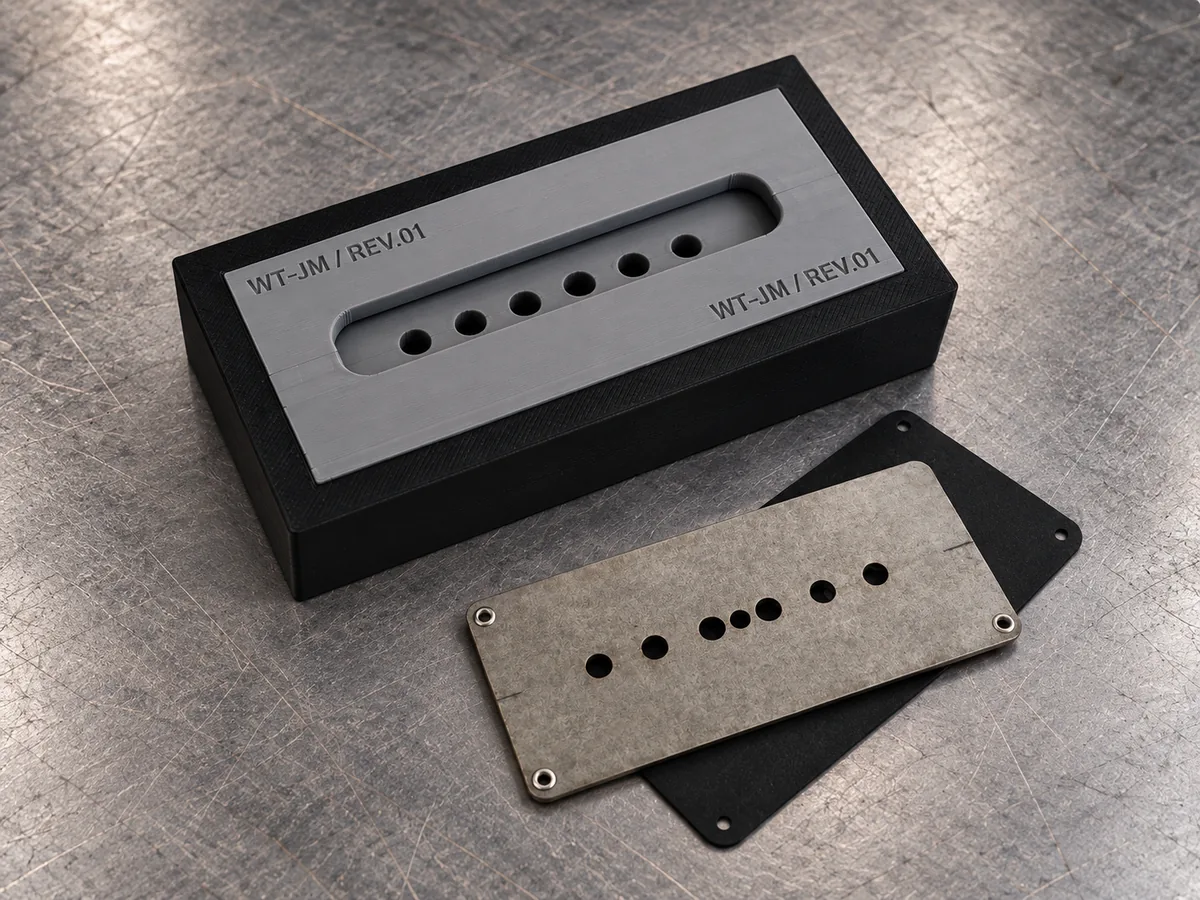

Winder Tooling Jazzmaster® pickup assembly jig
Jazzmaster®

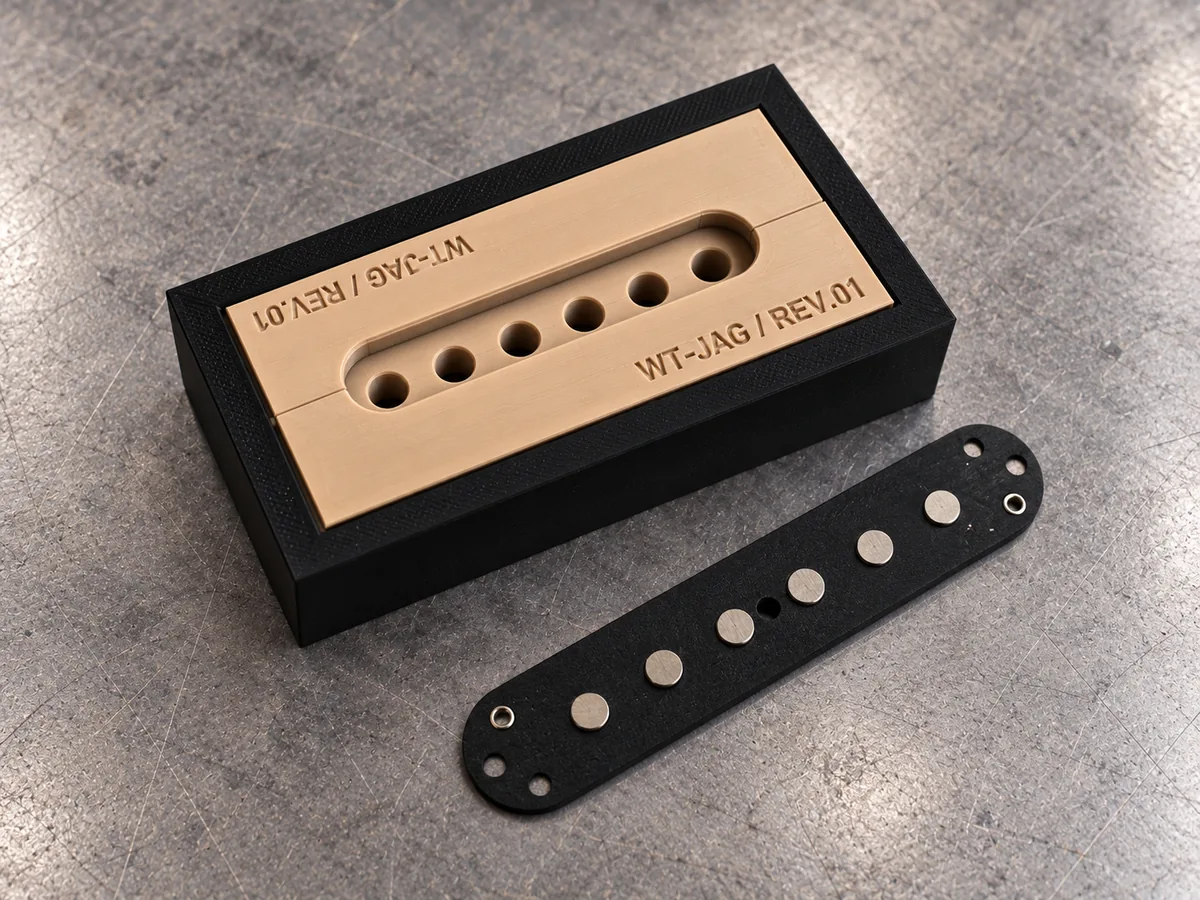

Winder Tooling Jaguar® pickup assembly jig
Jaguar®
Mustang®
Musicmaster®

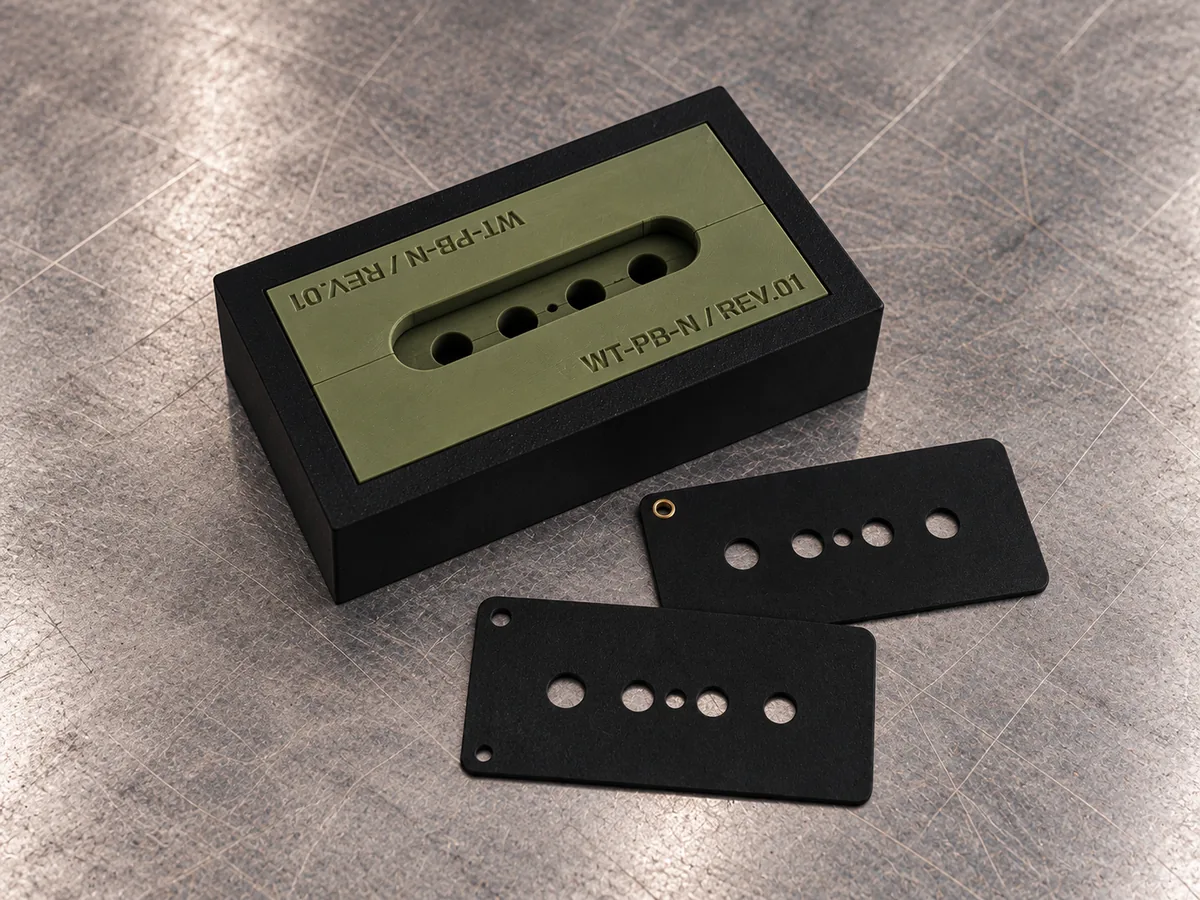

Winder Tooling Precision Bass® pickup assembly jig
Precision Bass®

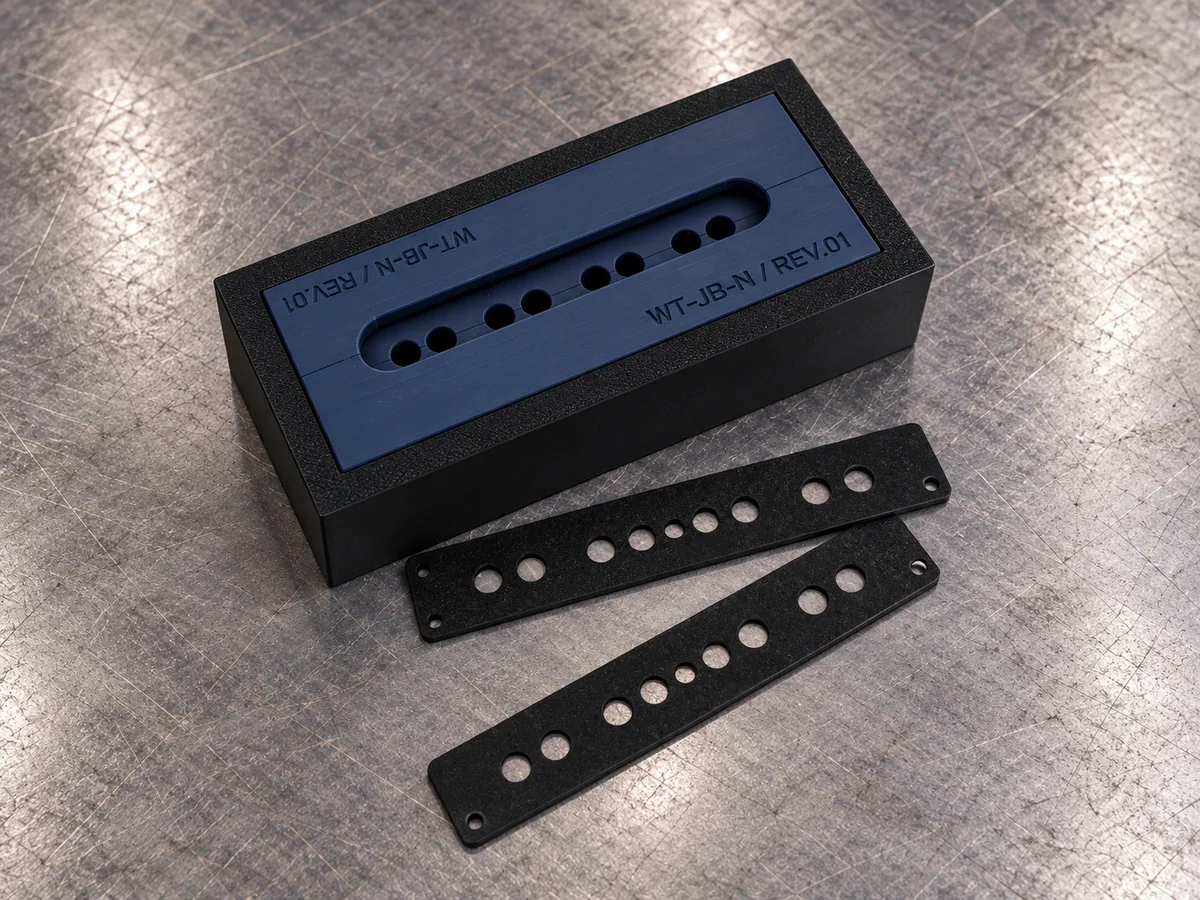

Winder Tooling Jazz Bass® Neck pickup assembly jig
Jazz Bass® Neck

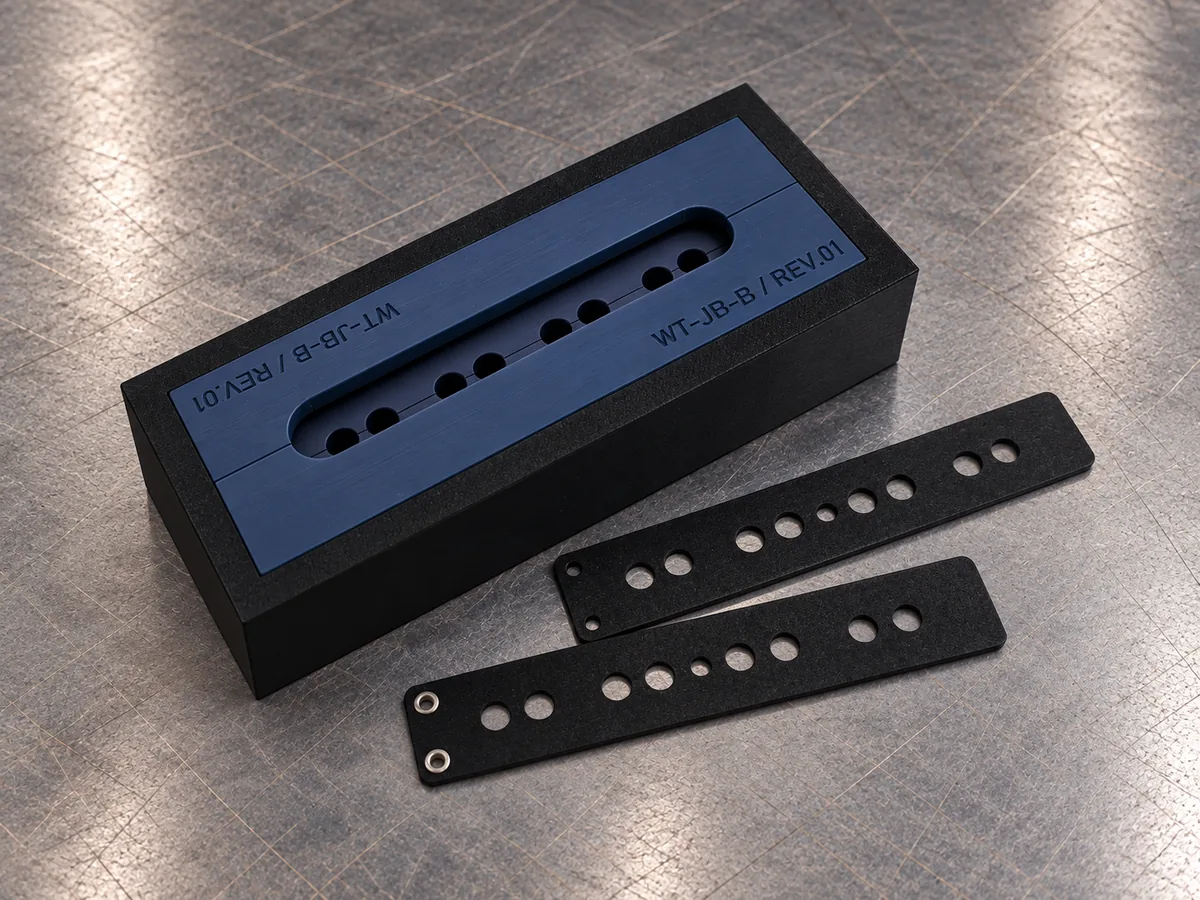

Winder Tooling Jazz Bass® Bridge pickup assembly jig
Jazz Bass® Bridge

Flatwork Types

Matched to the jig.

Pre-cut flatwork sets designed around the corresponding Winder Tooling jig geometry for consistent pole spacing, alignment, and repeatable assembly.

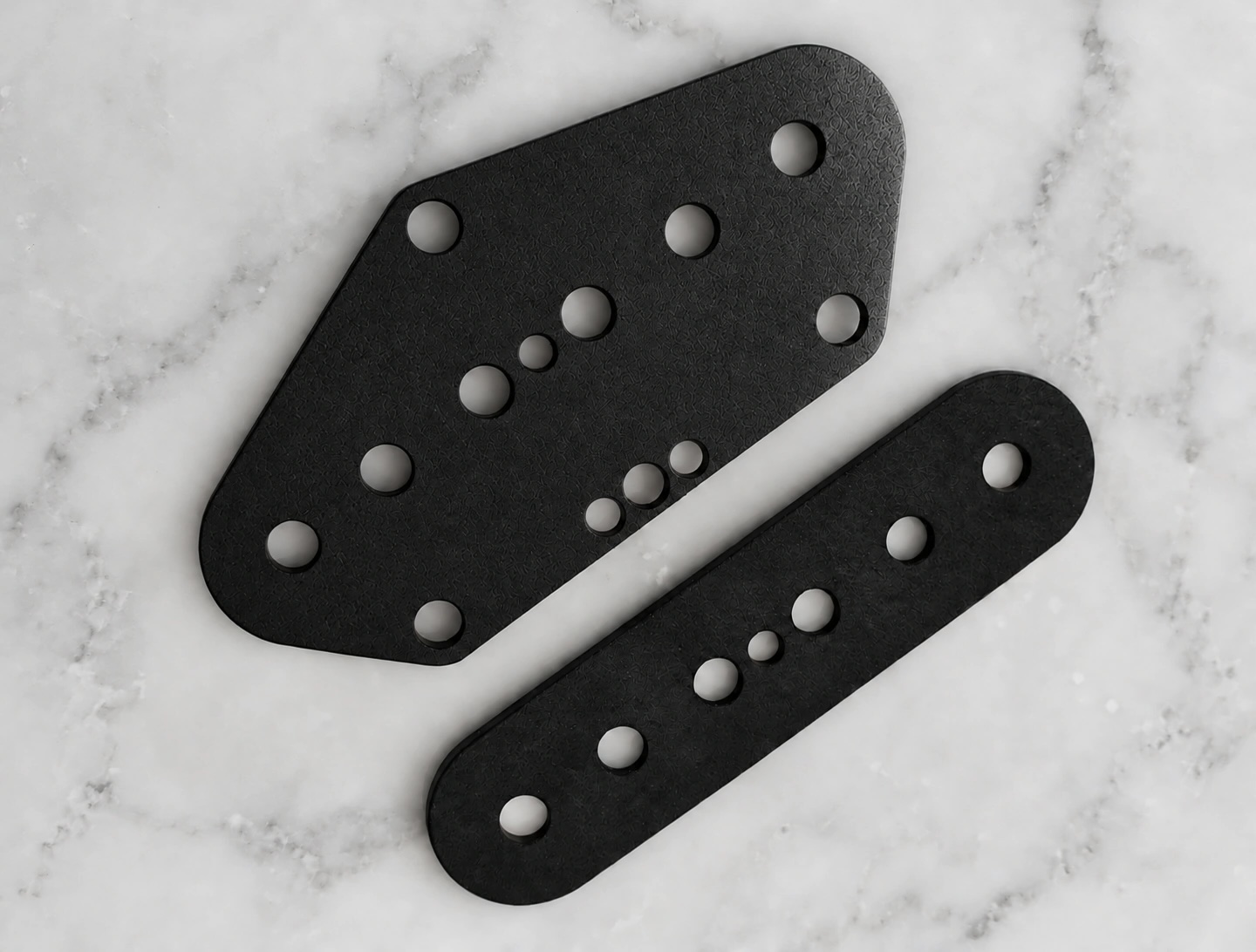

Winder Tooling Telecaster® Bridge flatwork
Telecaster® Bridge Flatwork

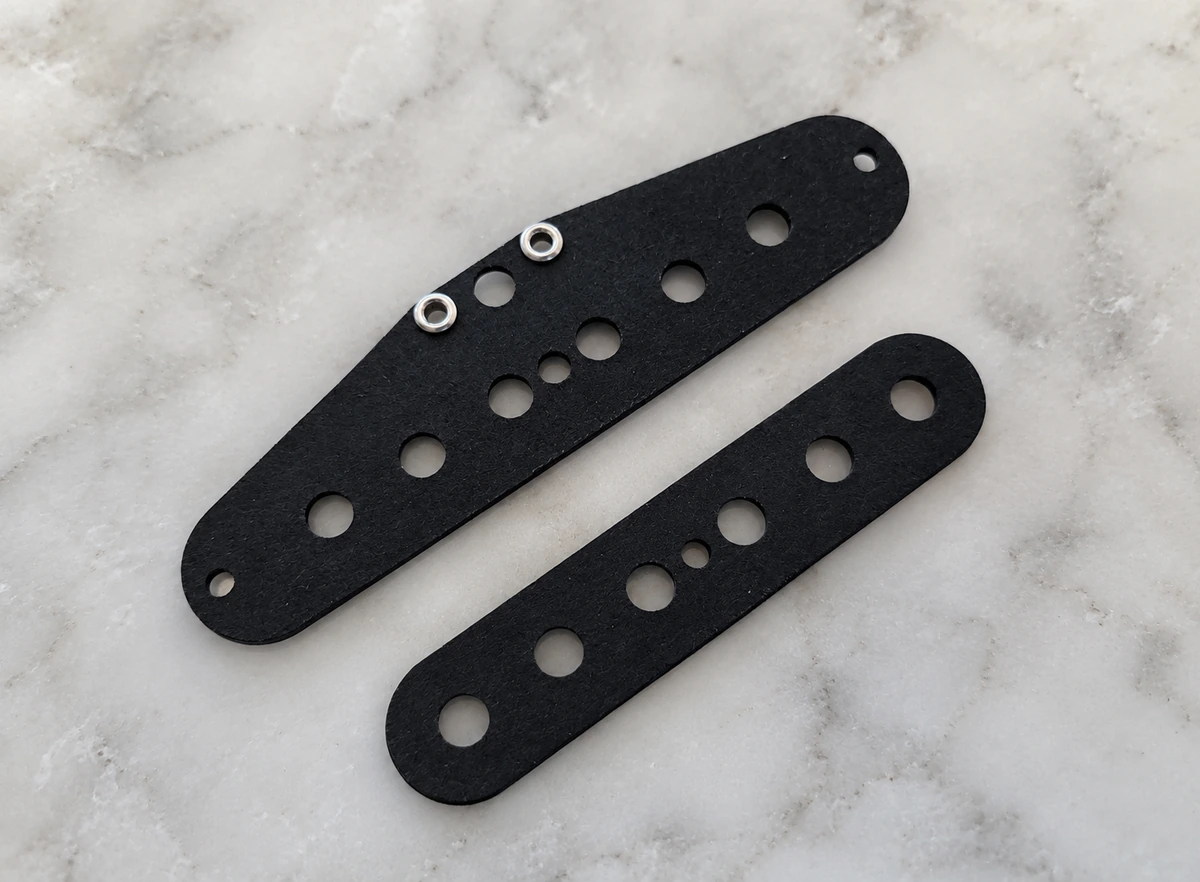

Winder Tooling Telecaster® Neck flatwork
Telecaster® Neck Flatwork
Winder Tooling Stratocaster® flatwork
Stratocaster® Flatwork

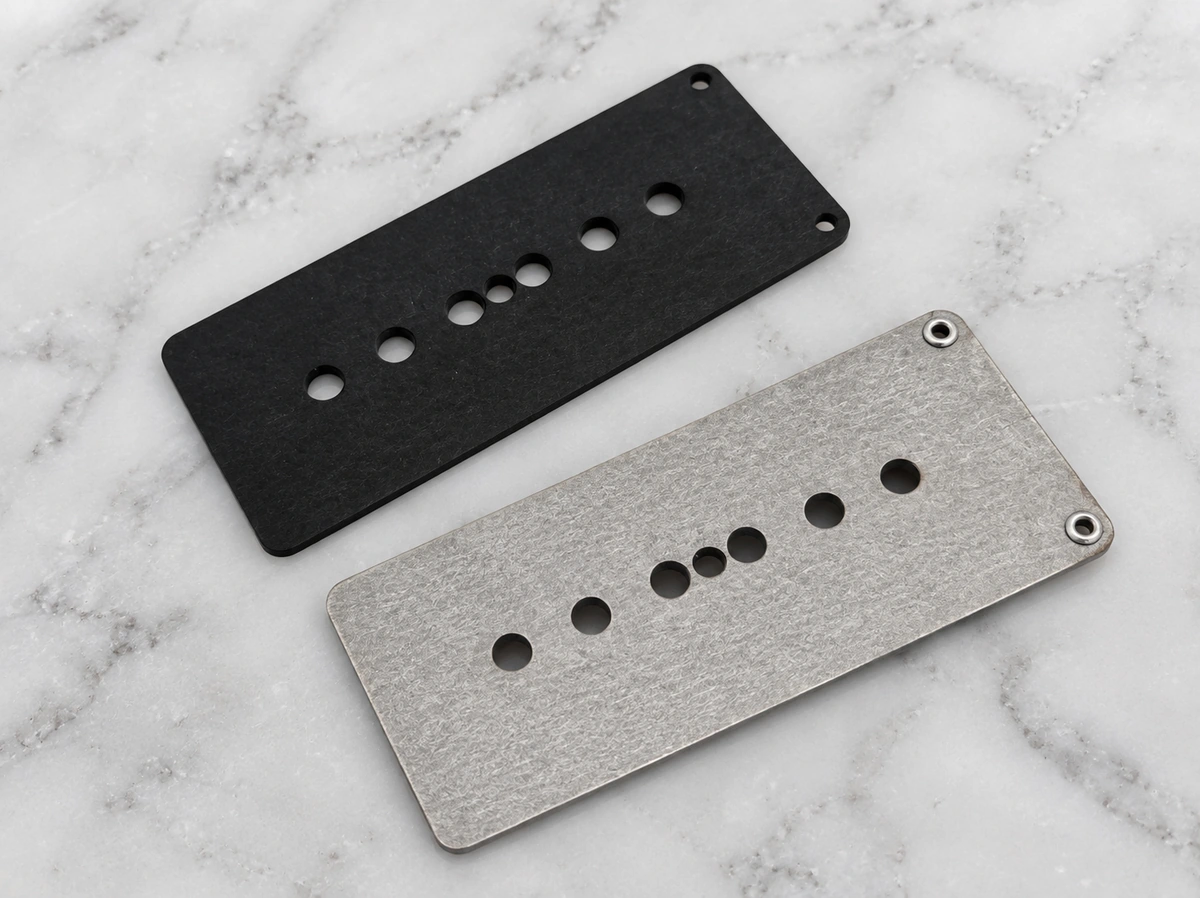

Winder Tooling Jazzmaster® flatwork
Jazzmaster® Flatwork

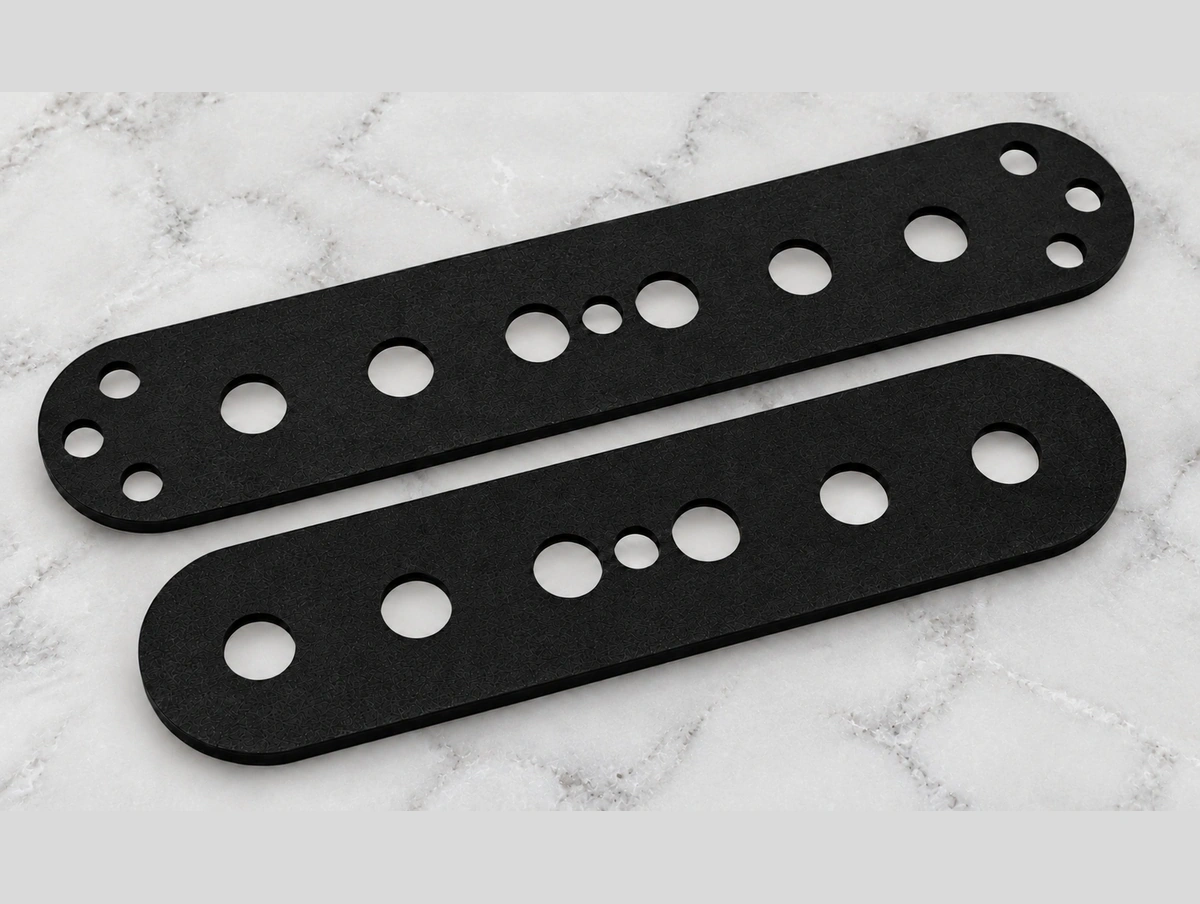

Winder Tooling Jaguar® flatwork
Jaguar® Flatwork

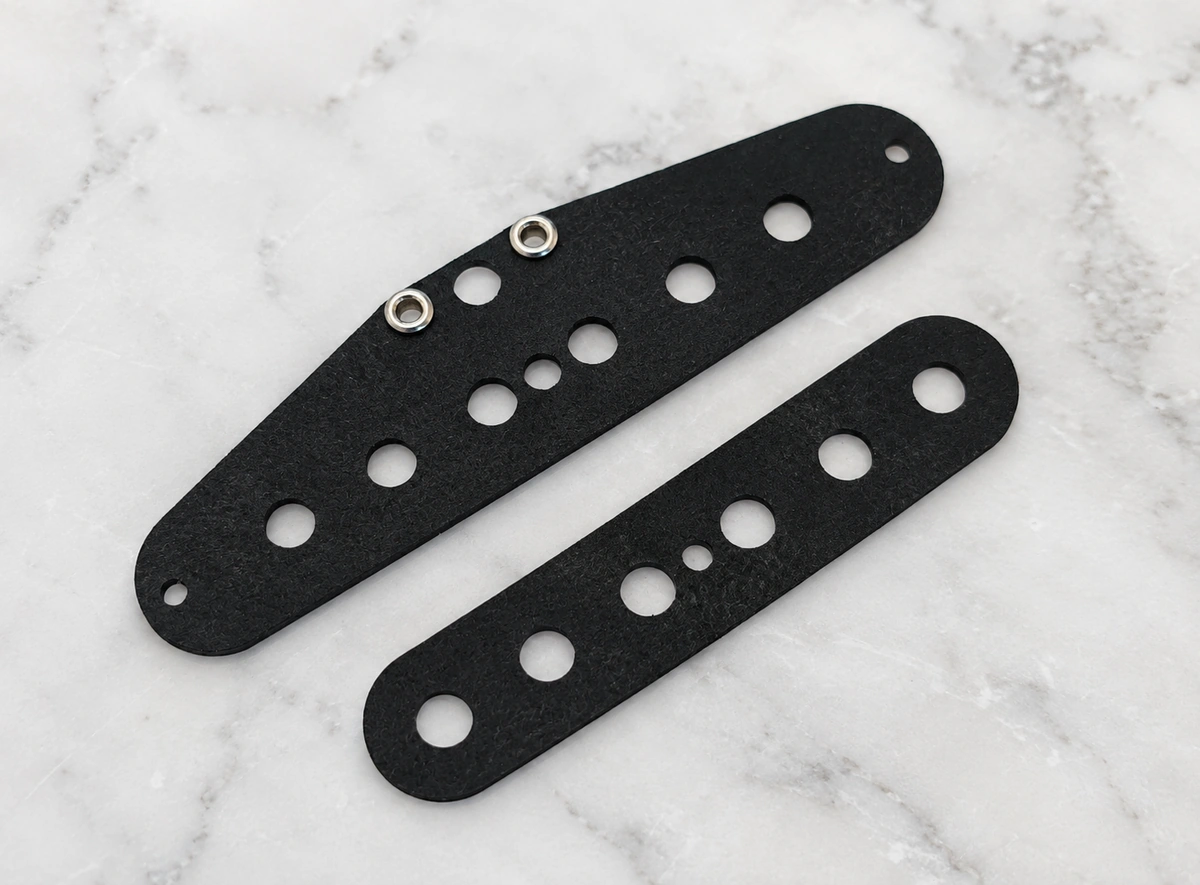

Winder Tooling Mustang® flatwork
Mustang® Flatwork
Winder Tooling Musicmaster® flatwork
Musicmaster® Flatwork

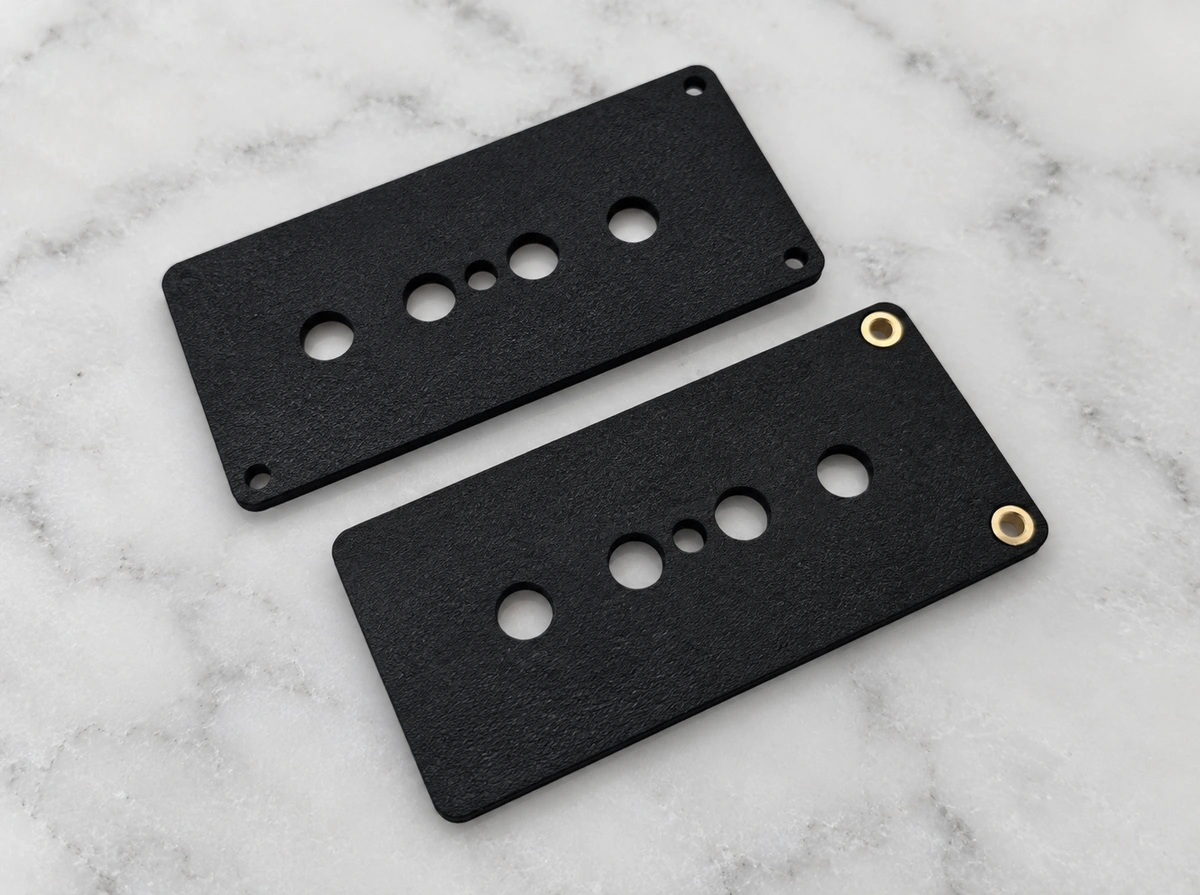

Winder Tooling Precision Bass® flatwork
Precision Bass® Flatwork

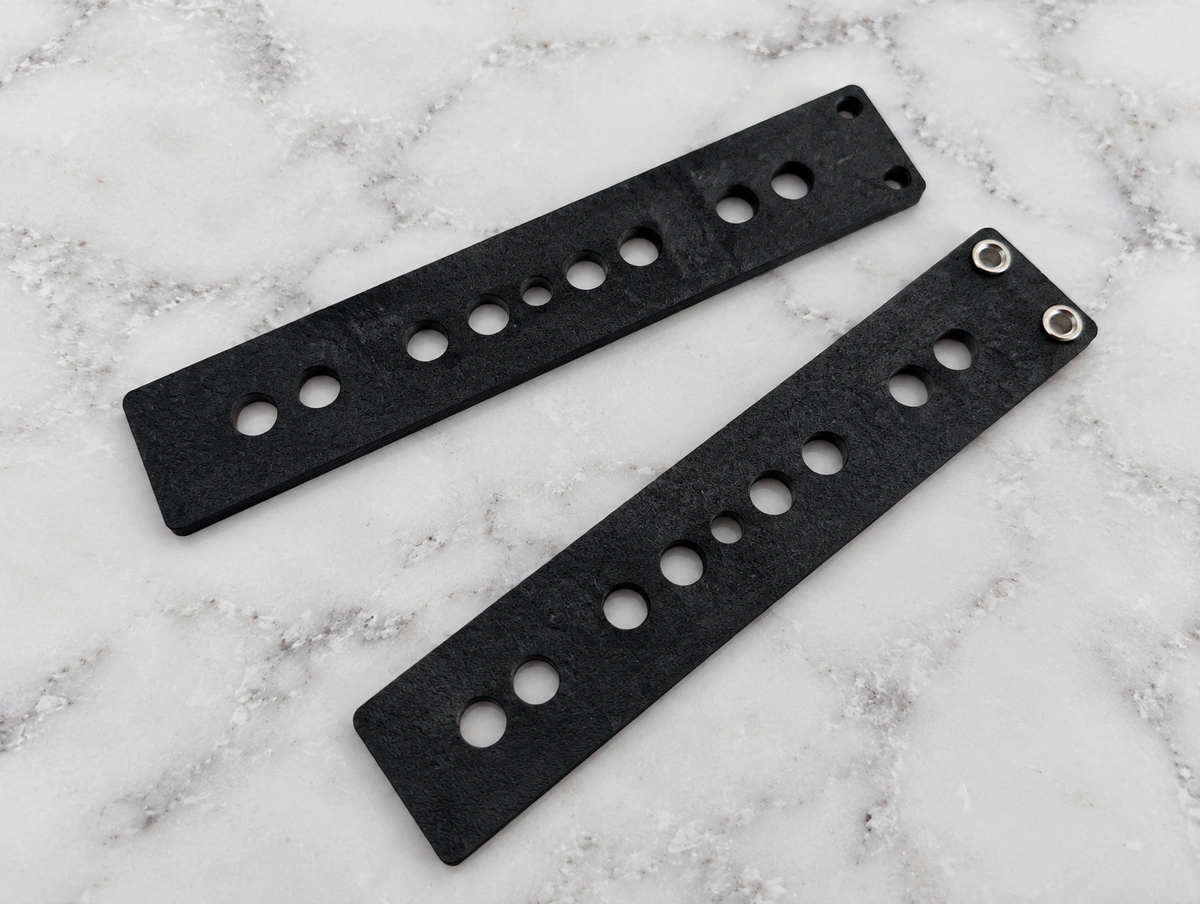

Winder Tooling Jazz Bass® Neck flatwork
Jazz Bass® Neck Flatwork

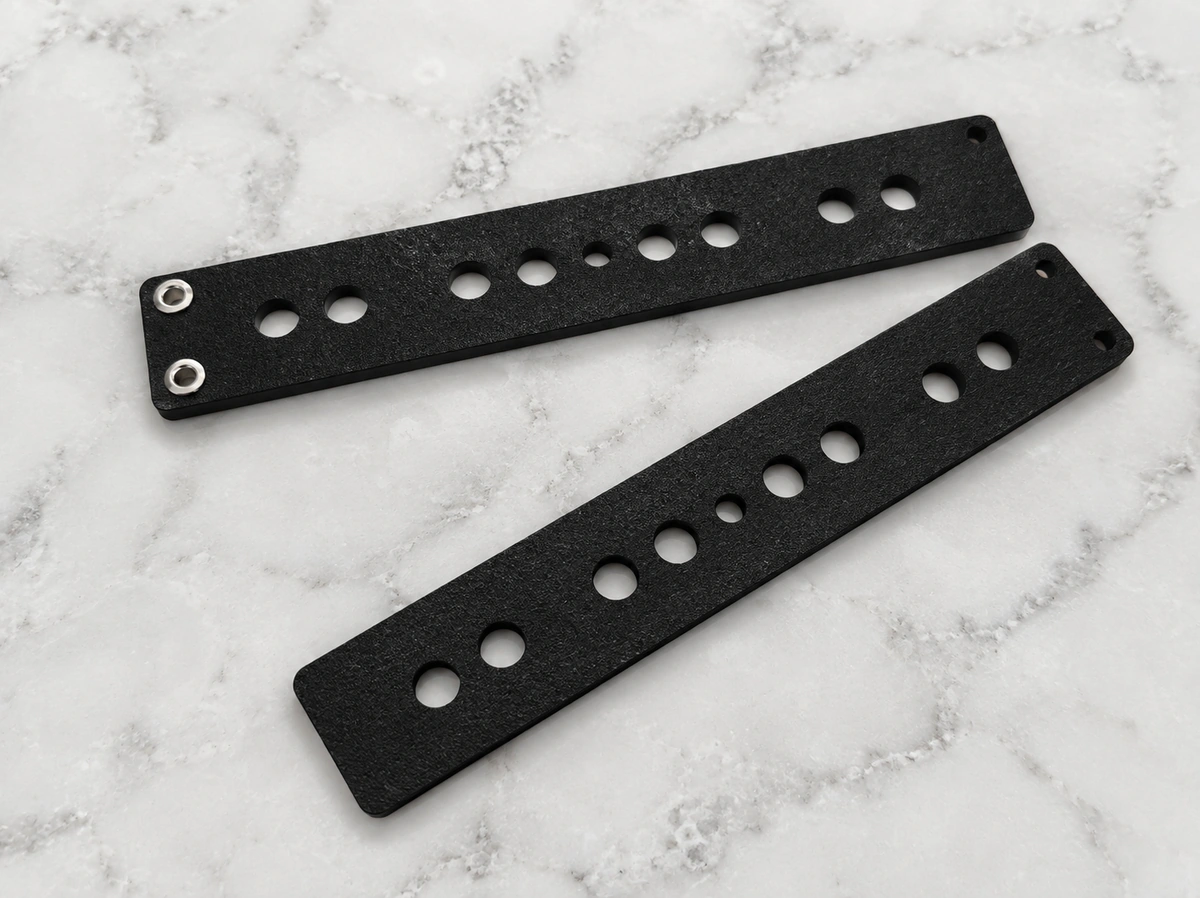

Winder Tooling Jazz Bass® Bridge flatwork
Jazz Bass® Bridge Flatwork

Process

Load. Press. Wind.

The product should make the assembly step simpler, not add another tool to manage.

01

Load the flatwork

Place the matching top and bottom flatwork into the pickup-specific jig.

02

Install the poles

The jig maintains spacing and alignment while the pole pieces are pressed into place.

03

Move to winding

Remove the finished bobbin and take it directly to your winding setup.

Built for pickup makers

Made for the workbench.

Winder Tooling develops pickup-specific jigs and components to make bobbin assembly cleaner, faster, and more repeatable.

Our jigs are designed around matching flatwork geometry, helping keep pole spacing and alignment consistent from one pickup to the next.

SHOP STANDARD
PRODUCTPICKUP ASSEMBLY JIGS
MATCHED PARTSFLATWORK / EYELETS
GEOMETRYPICKUP-SPECIFIC
REVISIONMODEL MARKED
DESIGNCANADA

Build a better pickup bench.

Product availability, flatwork, eyelets, wholesale inquiries, and upcoming jig geometries.
